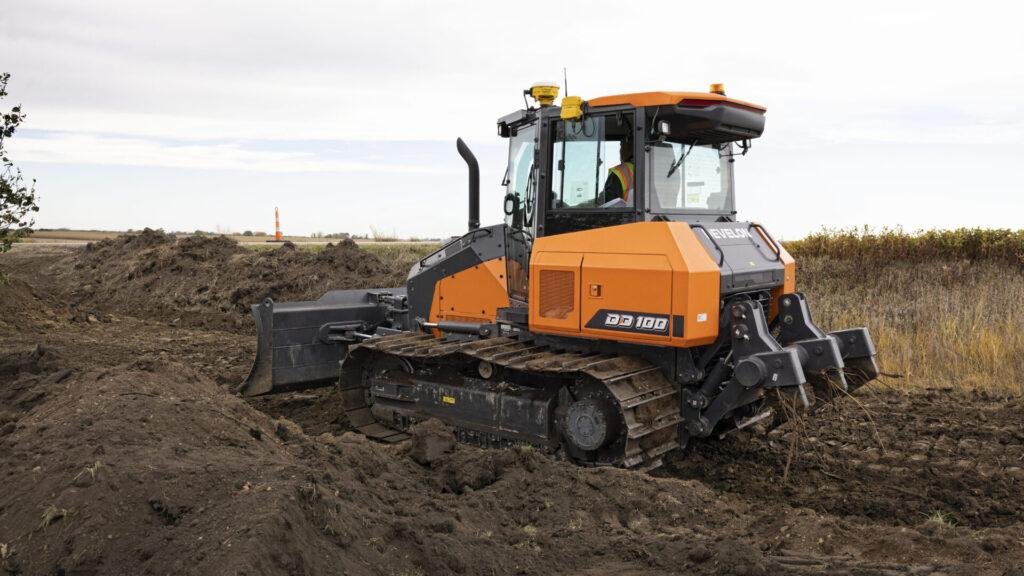

Achieving precise grading in construction projects has always been a challenge. Traditional methods relied heavily on manual adjustments, leading to inconsistencies and delays. However, today’s dozers come equipped with advanced 2D and 3D grade control systems, enabling higher accuracy, efficiency, and productivity.
Understanding 2D and 3D grade control
A 2D grade control system acts like an advanced leveling tool, guiding the dozer’s blade to maintain the correct height and slope. This system typically relies on laser sensors but can also function without them.
“2D systems allow operators to maintain a single plane—either flat, single-slope, or dual-slope,” said Moo Young Park, Senior Product Manager at Develon North America. “They ensure the blade remains at the right height and angle but don’t account for complex terrain variations.”
A 2D system is well-suited for simpler applications such as road grading and site leveling. For more intricate projects requiring precise elevation and slope adjustments, a 3D grade control system is essential.
How 3D grade control enhances performance
Unlike 2D systems, a 3D grade control system integrates GPS and advanced positioning technologies to track the dozer’s exact location and compare it with a digital terrain model (DTM) of the job site.
“3D systems utilize GNSS, GPS, lasers, sonic sensors, or total station technology to provide real-time terrain data,” Park explained. “This allows for automatic blade adjustments based on the project’s design specifications.”
Since 3D systems continuously compare the dozer’s blade position with the intended grading plan, operators can complete tasks faster and with fewer passes, reducing rework and improving efficiency.
Real-time feedback for precision
Both 2D and 3D grade control systems display critical data on monitors inside the dozer’s cab. This real-time feedback enables operators to make precise blade adjustments without the need for constant manual measurements.

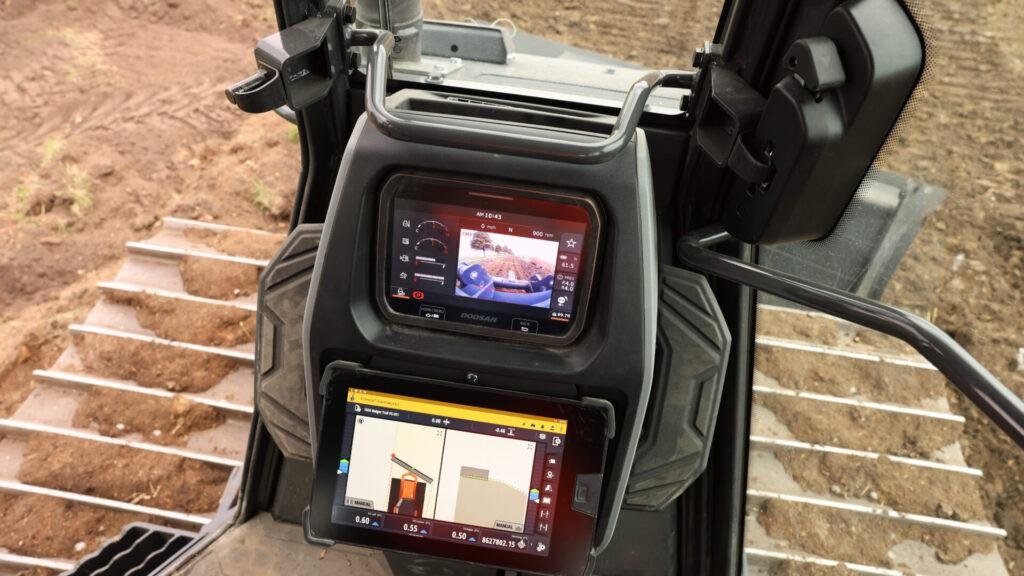

For 3D systems, a dedicated screen provides an overview of the terrain layout, while a separate display focuses on machine performance. This dual-monitor setup minimizes the need to switch between views, streamlining the workflow.
Boosting efficiency and safety
With automated blade control, modern grade control systems eliminate the need for constant dozer stops and surveyor interventions. Instead, digital data ensures the blade adapts dynamically to the ground conditions, maintaining optimal grading accuracy.
“In 2D systems, automatic adjustments keep the blade at the right height and slope,” Park noted. “Meanwhile, 3D systems continuously align the dozer’s blade with the site’s grading plan, ensuring precision in every pass.”
Additionally, 3D systems improve job site safety. GPS tracking ensures the dozer operates within predefined geofenced boundaries, reducing the risk of accidental entry into restricted areas. Collision avoidance technology further enhances safety by alerting operators to nearby obstacles.
Operator training and maintenance
Proper training is crucial for operators using 2D and 3D grade control systems. Park recommends spending at least two hours a day over two weeks to develop a working knowledge of these systems.
“Training covers everything from calibrating sensors to switching between manual and automatic modes,” he said. “For 3D systems, operators also need to understand GPS integration and terrain modeling.”
Regular maintenance is essential to ensure system accuracy. 2D systems require routine sensor and laser calibration, while 3D systems demand GPS receiver checks and software updates to maintain optimal performance.
By adopting advanced grade control technology, contractors can significantly enhance grading precision, efficiency, and safety—making it an indispensable tool for modern construction projects.
